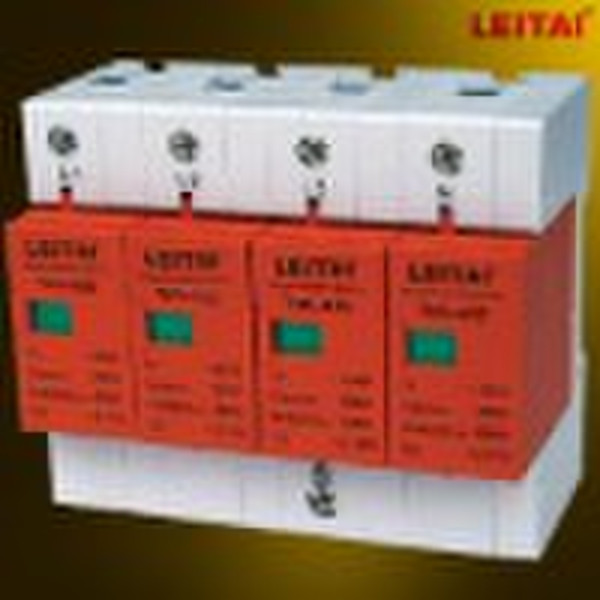

SPD (60KA)
Nigel Wang
Contact person
Basic Information
| Place of Origin | Zhejiang China (Mainland) |
|---|---|
| Brand Name | LEITAI |
| Model Number | TNR-B30/4 |
SPD (60KA) Applied for single-phase,three-phase surge protection under various power supply system through different combinations.Applicable for B,C,D class protection,it adapts to LPZ1-LPZ2 LPZ3 lightning protection area. MOV technical data: Rated voltage Un (V ) 220/380 Continuous voltage Uc (V ) 385 420 Standard discharge current In(KA) 30 8/20µS Max current capacity Imax(KA) 60 8/20µS Response time (ns) < 25 Protection level (KV ) < 2.0 < 2.1 NPE technical data: Continuous voltage Uc (V): 250 DC breakdown voltage (100V/S) (V) 500 Impulse breakdown voltage (1KV/μs) (V)<=1100 Max impulse withstand current (8/20μs)(KA) 80 Insulation resistance (MΩ) < 103 protection level(8/20μs)(KV)<=1.3 MOV
Delivery terms and packaging
Packaging Detail: Dimension of outer box 490*220*160mmDimension of inner box 95*113*72 mm18PCS/CTN Delivery Detail: 15 days
Port: NINGBO or SHANGHAI
